Description

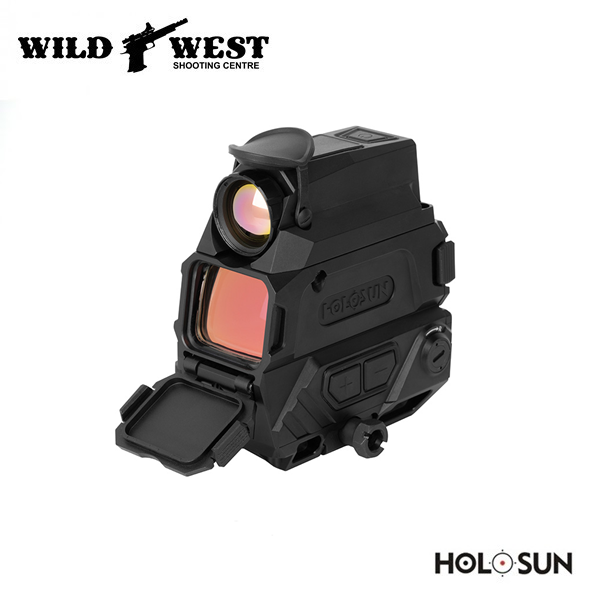

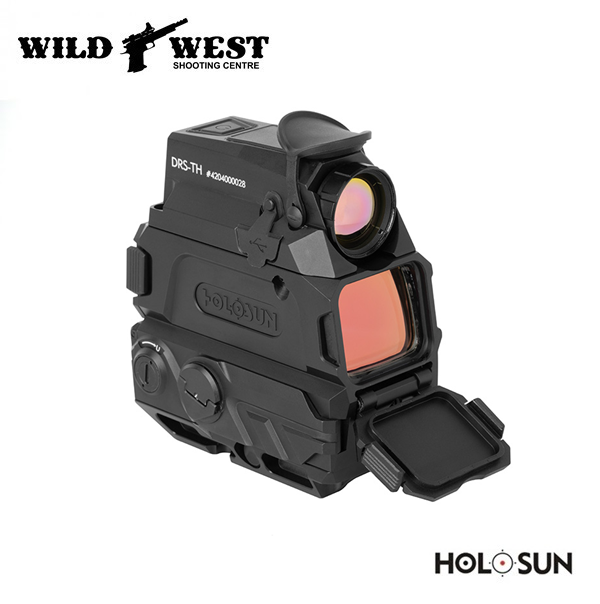

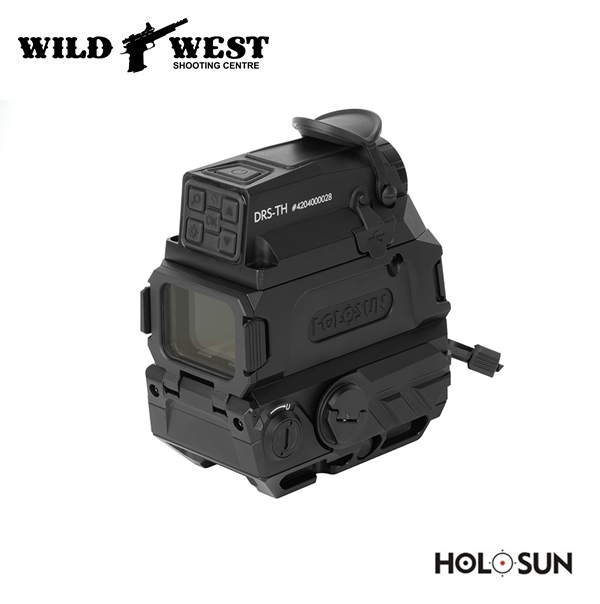

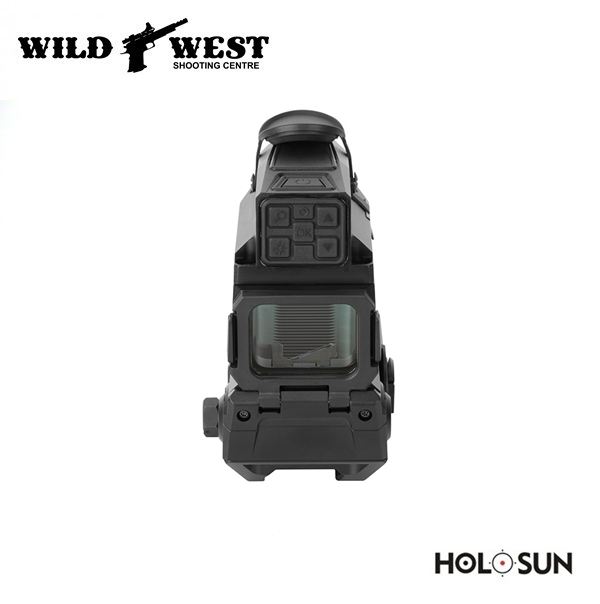

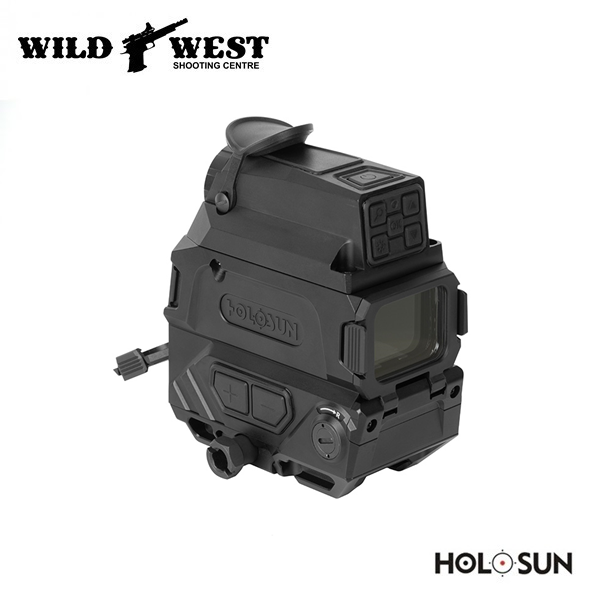

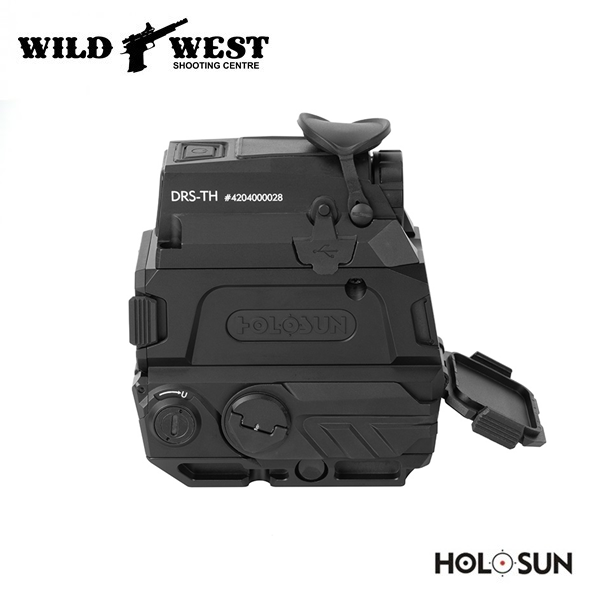

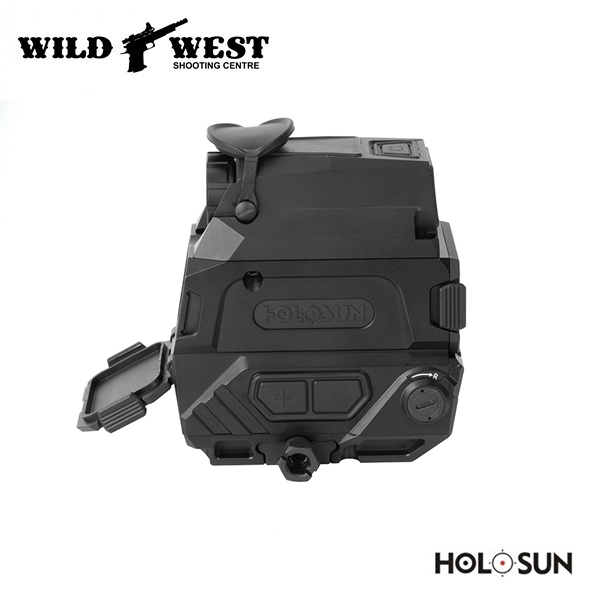

The Holosun DRS-TH (Digital Reflex Sight – Thermal) redefines the boundaries of red dot optic technology. Using a 256×192 Thermal Sensor, the DRS-Th fuses together your traditional red dot optic with a thermal overlay to give you the best of both worlds. Up to 10 hours of battery runtime for the thermal sensor and over 50,000 hours of runtime for your red dot gives users an optic that can keep up with the most demanding tasks. White Hot, Black Hot, Outline and Highlight modes give you flexibility depending on the settings. Capture the action through the thermal with the built in internal video recording that is as easy as a single button press.
If thermal isn’t needed for the task, simply flip down the front lens cap and use the DRS-TH just as you would any of our traditional red dot optics giving you the best of both worlds.
Features
- Shake Awake Technology Auto Shutoff
- MRS – Multi-Reticle System (2MOA Dot, 65 MOA Circle, Circle-Dot
- Red Dot Sight w/ Fusion Thermal Overlay
- 50 FPS Overlay Refresh Rate
- Digital Cross or T Style Night Vision Reticles
- Internal Video Recording System
- 1x, 3x, 5x Digital Zoom
Technical Specifications
Optical Specifications
Reticle | 2 MOA Dot & 65 MOA Circle |
Light Wavelength | 650nm |
Reticle Color | Red |
Parallax Free | Yes |
Unlimited Eye Relief | Yes |
Magnification | 1x |
Multi-Coatings | Yes |
Electronic Specifications
Power Source | Battery |
Battery Type | 18350 |
Battery Life (Hours) | 10 Hours |
Thermal Modes | White Hot / Black Hot / Outline / Highlight |
Digital Modes | Thermal Fusion |
Video Recording | Internal |
Screen Refresh Rate | 50 FPS |
Digital Screen | 1024×768 OLED |
Brightness Setting | 8 DL & 4 NV |
Physical Specifications
Window Size | 1.25×0.98 |
Dimension (in) | 3.7×2.2×3.5 |
Weight (oz) | 18.5 |
Mechanical Specifications
Housing Material | 7075 T6 Aluminum |
Surface Finish | Anodize |
Adjustment per Click | 0.5 MOA |
W&E Travel Range | ±50 MOA |
Environment Specifications
Storage Temperature | -40℃~70℃ |
Working Temperature | -20℃~51℃ |
Submersion | IP67 |
Vibration | 1000G |
Magnification Specifications
Digital Zoom | 1x 3x 5x |
Transmittance | NA |
Diopter | NA |
Field of View | N/A |
Eye Relief | N/A |
Exit Pupil | N/A |
Magnification | Digital |
